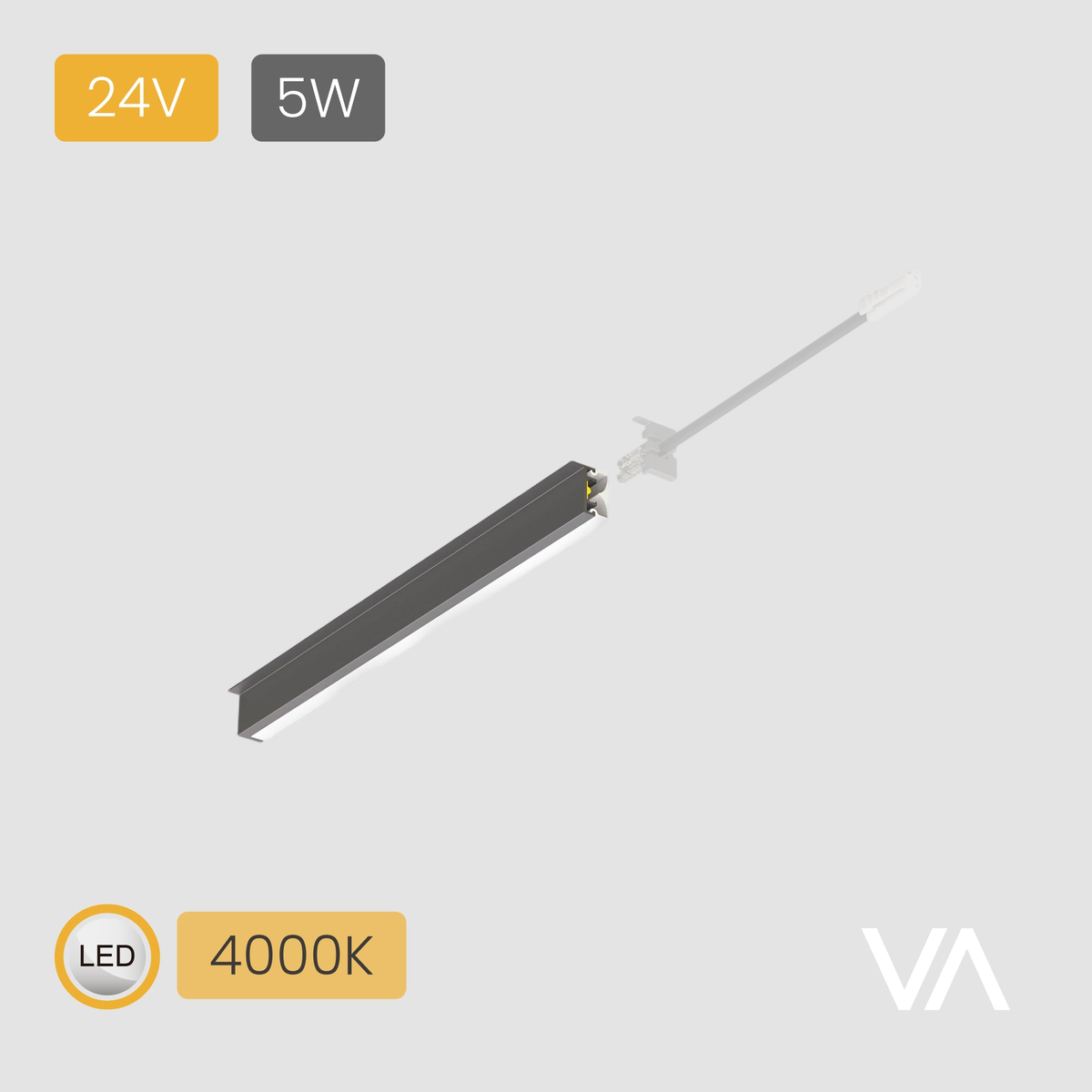

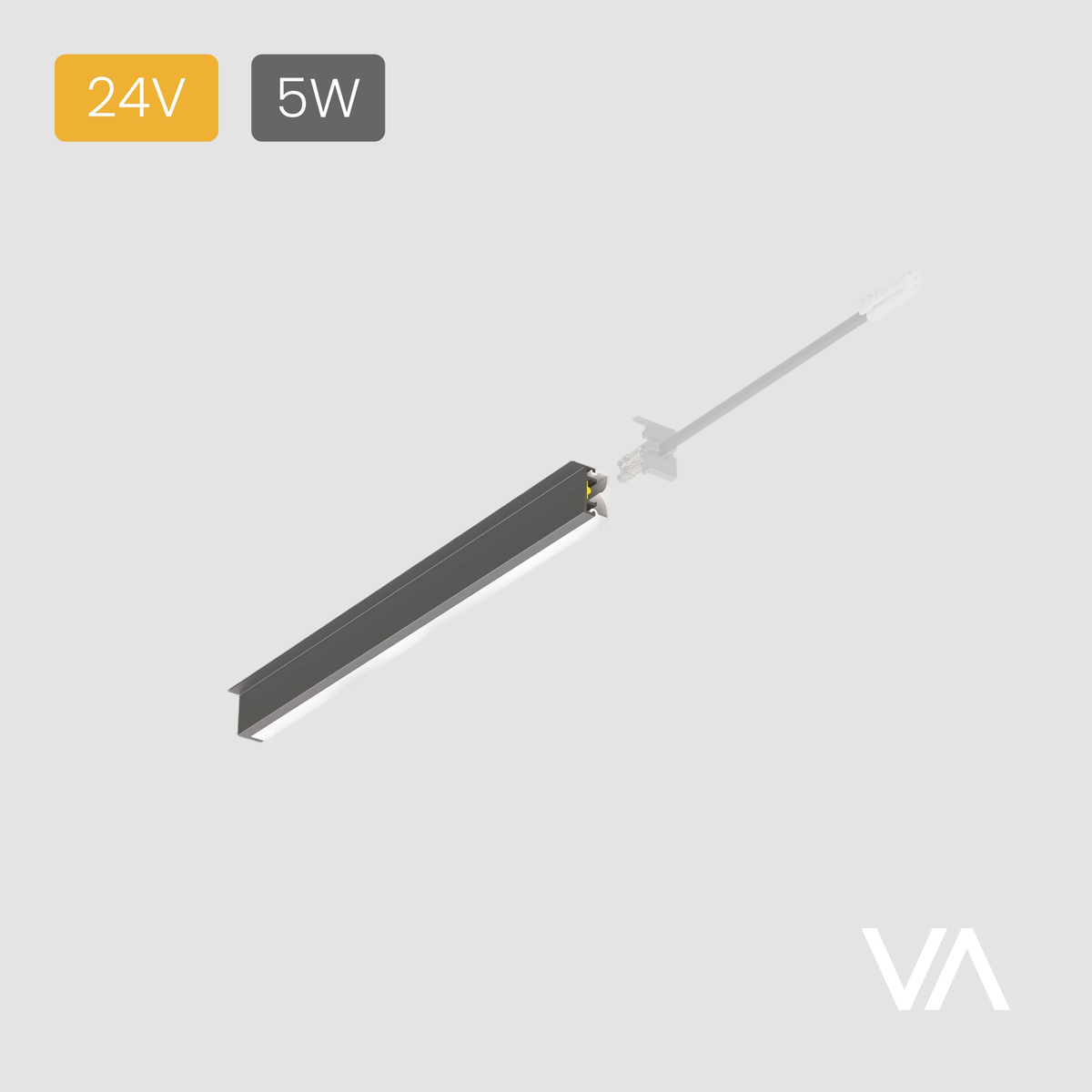

VOXAURA Rear-mounted Linear Light, PL4002, 24V, 5W/m, 2-pin Monochrome, 320 LEDs/m, IP20, 3m, Silver-grey
The PL4002 rear-mounted linear light is designed for recessed installation in furniture. Its pre-assembled 3 m aluminium profile contains a COB LED ribbon and diffuser, providing white light at 24 V and 5 W/m. With CRI 93 and 320 LEDs per metre, it delivers 114–126 lm/m, depending on the selected colour temperature. The light is rated IP20 and supports dimming with compatible controls. Available in separate 3000 K and 4000 K variants.
The profile can be cut to the required length on site, then connected using clip-on end components and a power cable. The clip-in system secures the profile without adhesive and allows later adjustment. Supplied as one linear light with the diffuser pre-installed. Installation and connection accessories are sold separately.
Specifications and selection
SKU 201.10.22.021
- Colour System: Monochrome, 2-pin
- Colour Temperature: 4000 K
- Kind of Light: Rear-mounted Linear Light
- Colour Rendering Index Ra: 93
- Luminous Flux: 126 lm/m
- Lumen Efficacy: 25 lm/W
- Dimensions (LxWxH): 3000 x 17 x 15 mm
- Colour / Finish: grey
- Material: aluminium
- Number of LEDs: 320/m
- Input Voltage: 24 V DC
- Wattage: 5 W/m
- Beam Anngle: 60°
- with Sensor: no
- Energy Efficiency Class: G
- Degree of Protection: IP20
- Drill hole: 11 x 19 mm
- Installation: recessed mounting
SKU 201.10.22.020
- Colour System: Monochrome, 2-pin
- Colour Temperature: 3000 K
- Kind of Light: Rear-mounted Linear Light
- Colour Rendering Index Ra: 93
- Luminous Flux: 114 lm/m
- Lumen Efficacy: 22 lm/W
- Dimensions (LxWxH): 3000 x 17 x 15 mm
- Colour / Finish: grey
- Material: aluminium
- Number of LEDs: 320/m
- Input Voltage: 24 V DC
- Wattage: 5 W/m
- Beam Anngle: 60°
- with Sensor: no
- Energy Efficiency Class: G
- Degree of Protection: IP20
- Drill hole: 11 x 19 mm
- Installation: recessed mounting
Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.
