OPTION A
180 mm / tall door
Handle bottom is 1000 mm above the door bottom.
AeroFrame / MADE TO ORDER
AeroFrame AeroLite Doors
Documentation
To enquire or order
Complete the series form and send it to your Sales Rep. No assigned representative? Contact our Sales team.
sales@knoxone.com.au · (03) 9543 6666
AeroFrame AeroLite Doors
Sale price$2,112.14
Made to order — price by project quotation. View the public AeroFrame AeroLite Doors specification and quotation page for selection details and the Order Form. Any system price attached to this record is not a fixed offer for your custom project.
Product Description

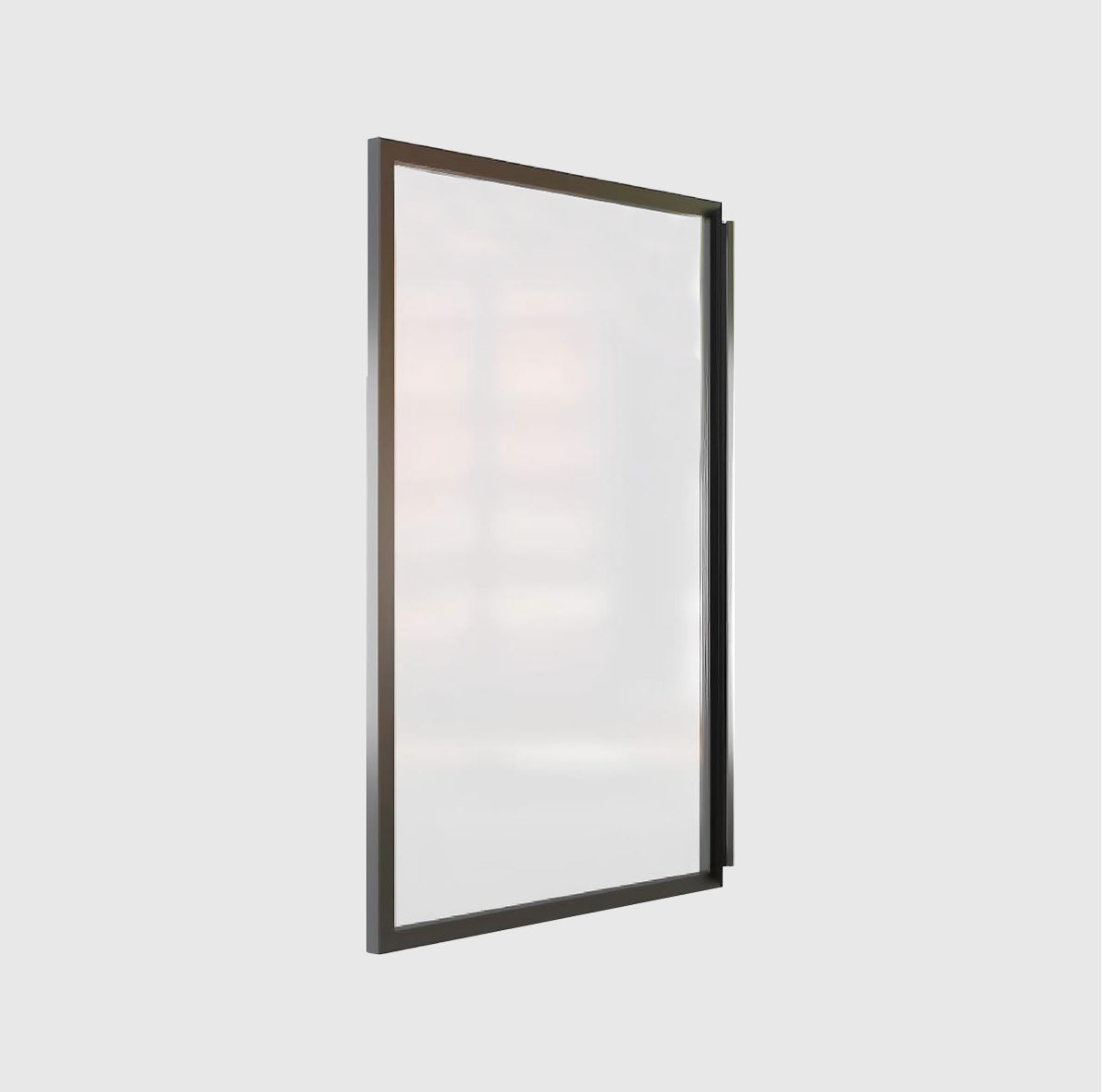

AeroLite brings a slim aluminium frame and a narrow visual border to hinged cabinetry. Hettich Sensys overlay soft-close hinges use a familiar cabinet-door concept.
Choose the shared frame finishes and AeroGlass collection, then coordinate the handle with the cabinet elevation. The clearances and six handle configurations below help you plan before completing the Order Form.
Order to finished door dimensions. Send the completed series form to your Sales Rep for quotation and specification review.
Planning & ordering
Check the cabinet requirements below, confirm your finishes against physical samples, then complete the latest series Order Form. A quotation is not a production approval.
Product Features
Door system
Slim-frame, side-hinged glass door
Hinge
Hettich Sensys overlay soft-close
Opening
95°
Finished door width
250–600 mm
Finished door height
300–2800 mm
Door thickness
17.7 mm
Overall with handle
36 mm
Side panels
16–18 mm
Side reveal / door gap
1.5 mm / minimum 3 mm
Handles
Six configurations, A–F
Frame finishes
Eight shared finishes
Panel options
AeroGlass: Pure, Reflect, Texture
Supplied With
Made-to-order door with Hettich Sensys hinges. Matching hinge plates are supplied for the selected side-panel thickness. Confirm the handle configuration in the Order Form.
Frame & Panel Options
Choose a frame finish, then a panel option available for this series. Confirm colour and texture against physical samples.
Frame Finishes
Eight finishes shared by all three series
Antique Bronze
Powder-coated
Champagne
Powder-coated
Iron Grey
Powder-coated
Jet Black
Powder-coated
Stone Grey
Powder-coated
Matte White
Powder-coated
Light Gold
Baked paint
Smoky Grey
Baked paint
AeroGlass
Pure
Pure Clear
Smoked Grey
Bronze
Reflect
Crystal Reflect
Smoke Reflect
Bronze Reflect
Texture
Frosted Wave
Frosted Reed
Selection reference only. Record your chosen names in the Order Form; images are not an online configurator.

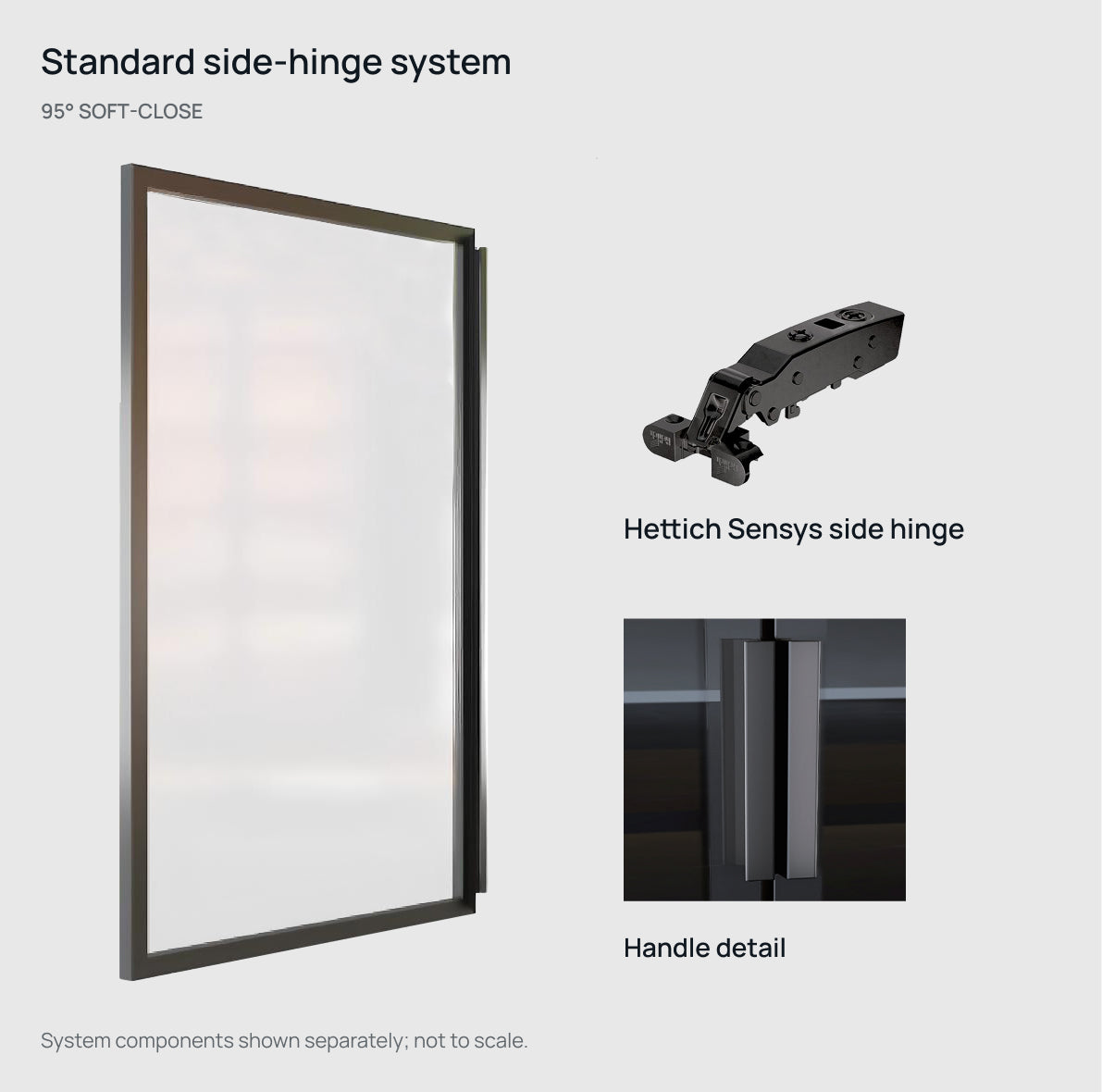

Hinge System & Cabinet Requirements

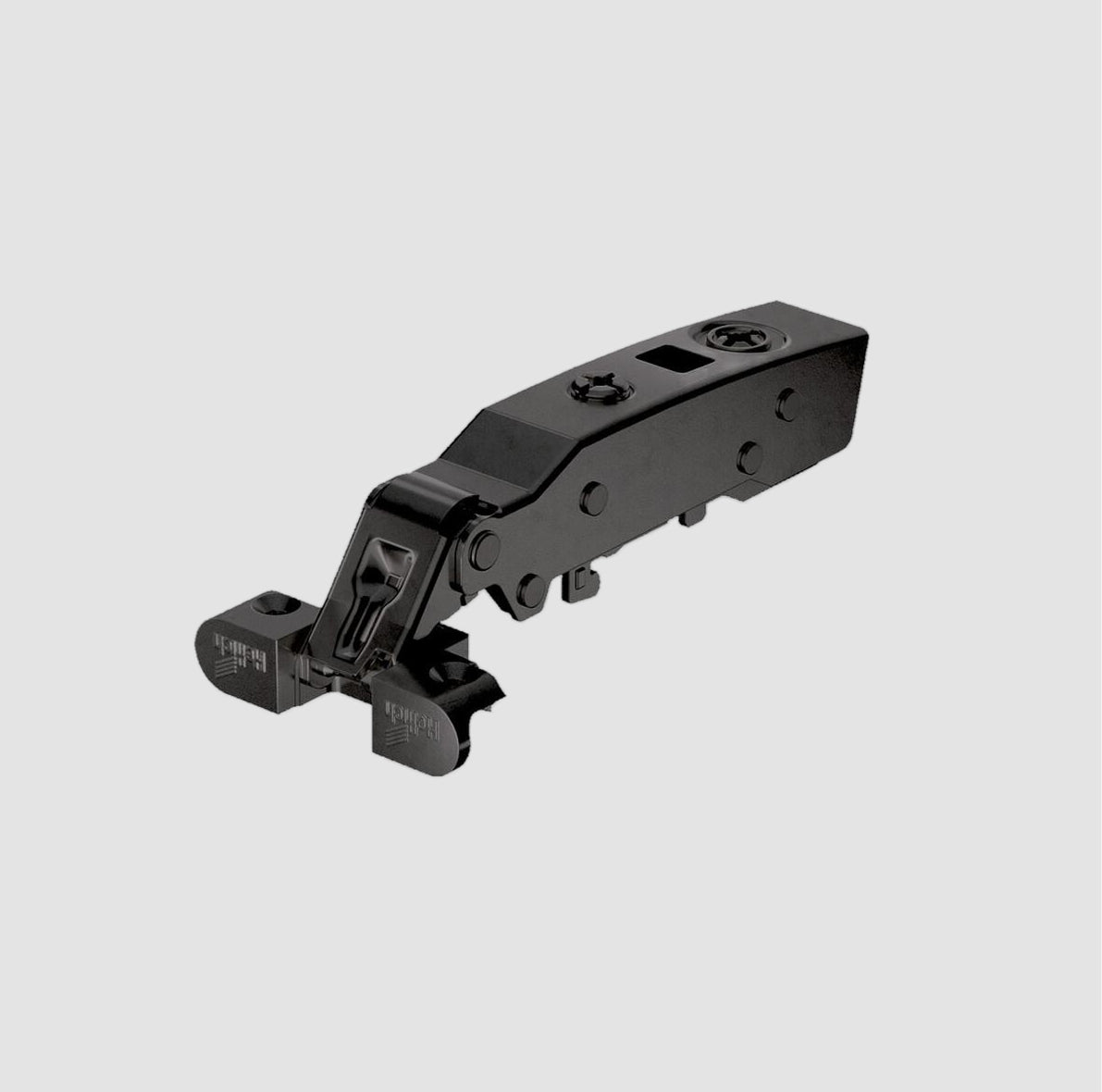

Hettich Sensys · familiar side-hinged construction
95° soft-close
Concealed overlay side hinge for the slim aluminium frame.
Hinge plates are supplied to suit the selected side-panel thickness.
Space & mounting reference
Side panels: 16–18 mm
Mounting hole line: 37 mm
Door Clearances
TOP VIEW · dimensions apply to the closed-door arrangement
Design dimensions
- Door thickness
- 17.7 mm
- Overall depth including handle
- 36 mm
Allow the stated clearances before entering the finished door sizes in the Order Form.
Reference: Design & Specification Guide, AeroLite. Use the stated dimensions; cabinet panel colours identify parts, not finish options.

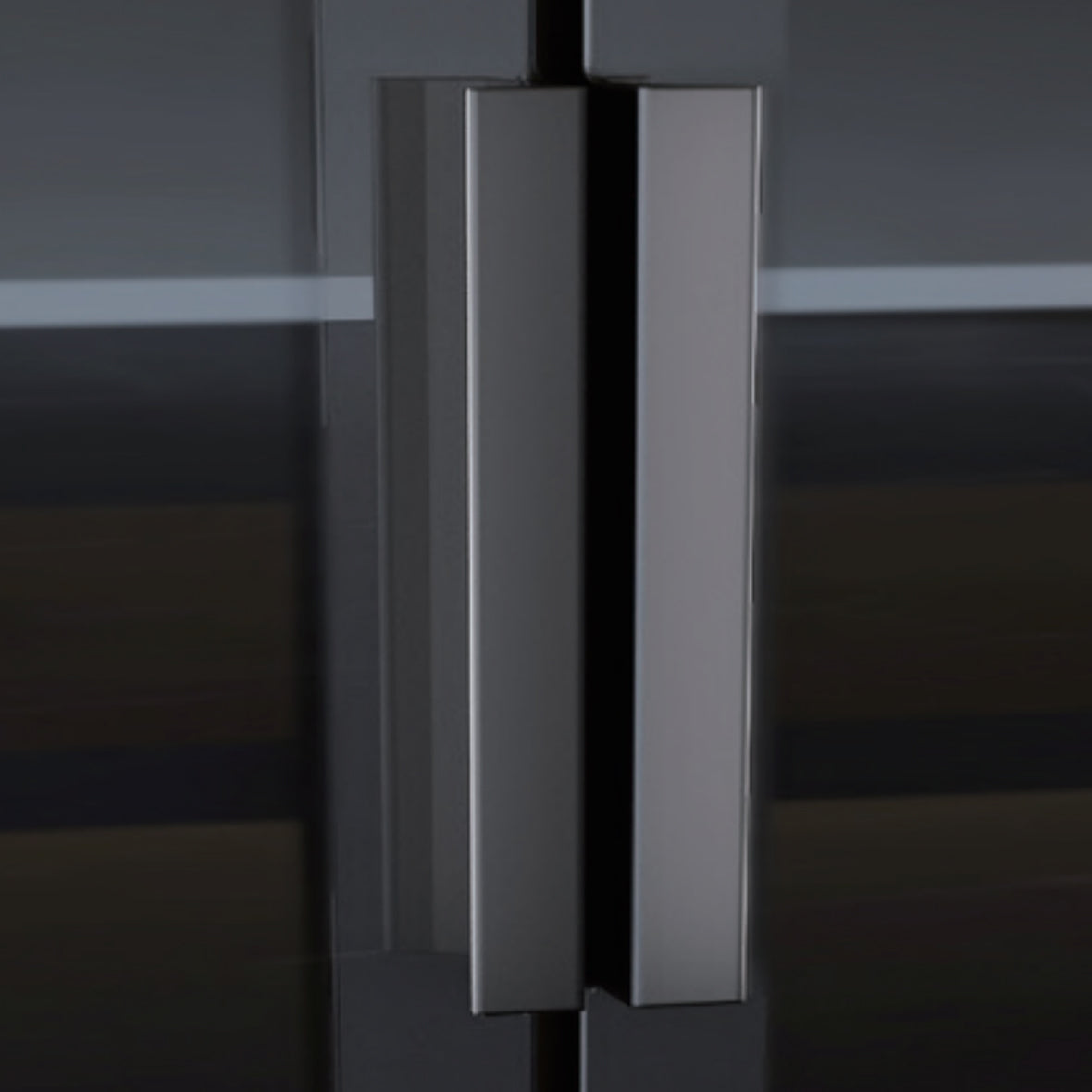

Handle Options
Six configurations, A–F. Gold identifies the handle position within the frame.
OPTION B
1180 mm Long Handle
Handle bottom is 35 mm above the door bottom.
OPTION C
Full-Length Handle
35 mm setback from both top and bottom.
OPTION D
180 mm / top position
Handle top is 35 mm below the door top.
OPTION E
180 mm / bottom position
Handle bottom is 35 mm above the door bottom.
OPTION F
No Handle
No integrated handle. Confirm the opening method with your cabinet maker.
H = finished door height. W = 250–600 mm. Use the stated dimensions and the AeroLite Order Form.
FAQ
Where can I find the complete guide and order details?
Download the Design & Specification Guide for the collection overview. Use the AeroLite Order Form for final measurements, hardware details and the matching order table.
Can I download documents without signing in?
Yes. The brochure and Order Form are public downloads. The Price List is available to signed-in registered customers only.
Where do I send my form, and what information is needed?
Send your AeroLite form to your Sales Rep with your company and project / PO reference. For a first quote, include finished width, height, quantity and panel finish. No assigned rep? Email sales@knoxone.com.au.
When is my custom order confirmed?
A quotation is not an order. Complete and sign the final specification for Sales review. Processing is released after approval and full credit / payment coverage. Sales confirms the lead time; released custom specifications cannot be changed or cancelled.
