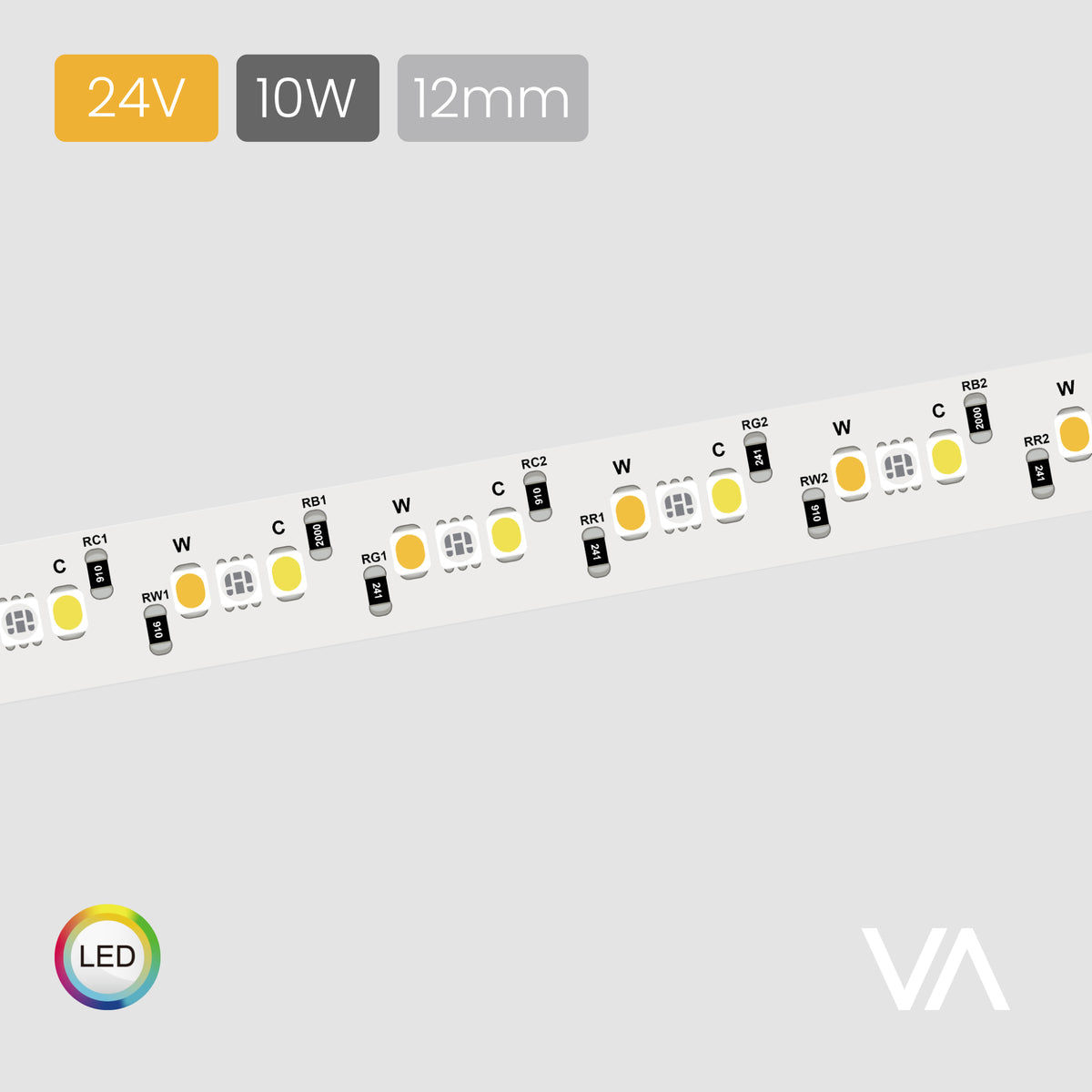

VOXAURA SMD LED-Ribbon, LS4090, 24V, 10W/m, 12mm, 6-pin RGB-Multi-white, 2700-5000K, 180 LEDs/m, IP20, 5m

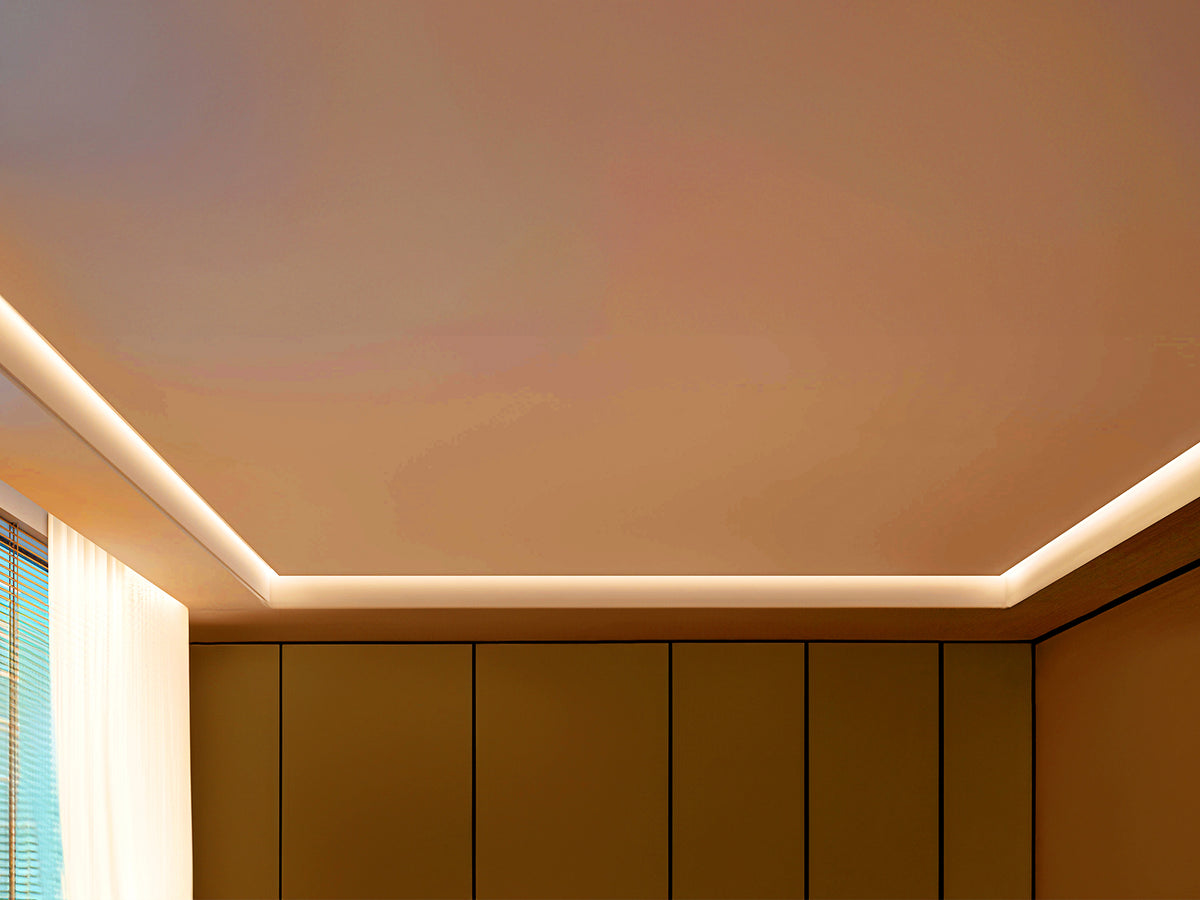

The LS4090 SMD LED ribbon provides RGB colours and adjustable 2700–5000 K white light for ceiling lighting. It operates at 24 V DC and consumes 10 W/m, and is 12 mm wide. Light output is 1250–1350 lm/m. CRI 93 supports accurate colour rendering in white-light mode. Dimmable with compatible controls and rated IP20.
Supplied as one 5 m roll. Self-adhesive backing supports installation. A 2 m connecting cable and matching 6-pin, 12 mm straight connectors are sold separately. A Smart-Driver, matching control unit and VOXAURA remote control are also required and sold separately. Size the driver for the installed ribbon length plus all other connected loads, keeping the combined wattage within its rated output.
Specifications and selection
SKU 200.13.00.001
- Colour System: RGB-Multi-white, 6-pin
- Colour Temperature: RGB & 2700 - 5000 K
- Colour Rendering Index Ra: 93

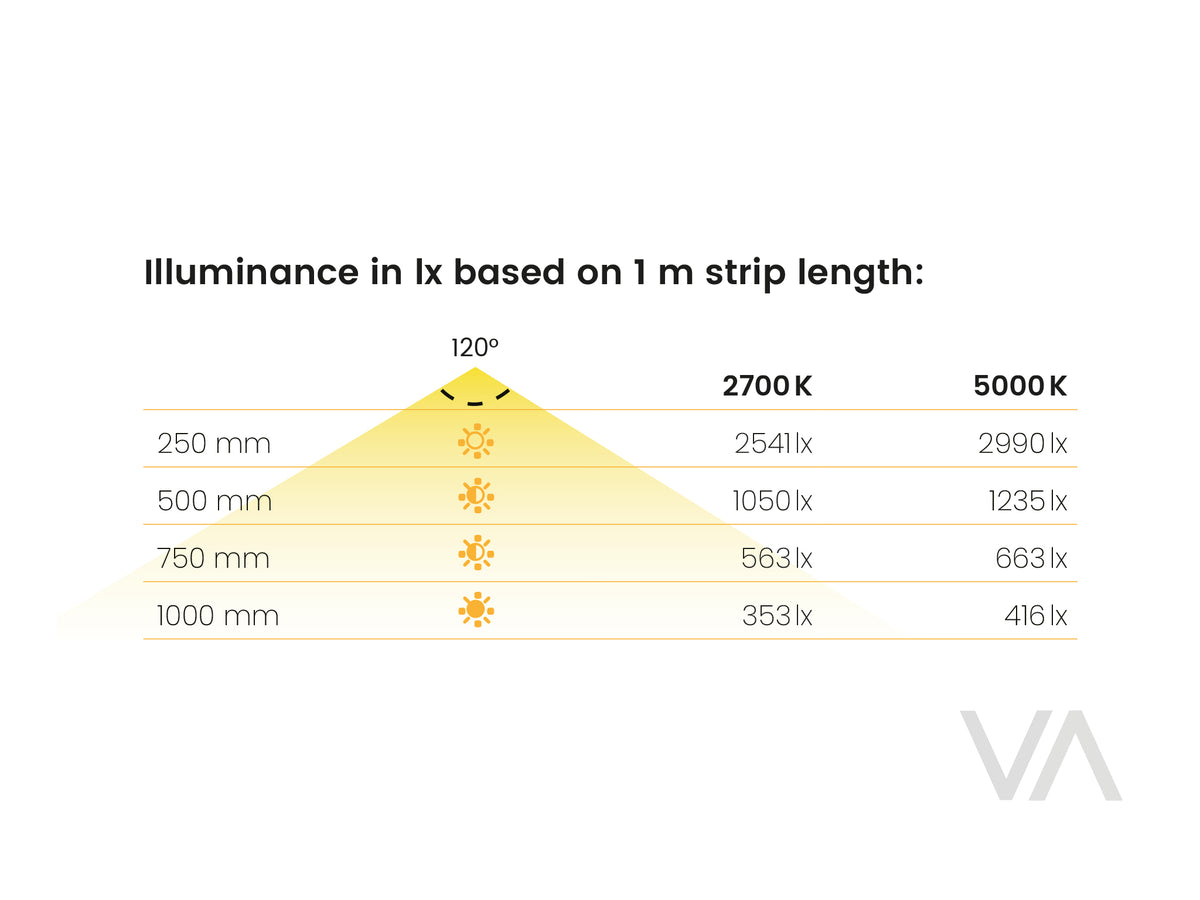

- Luminous Flux: 1250 - 1350 lm/m
- Lumen Efficacy: 125 - 135 lm/W
- Dimensions (LxWxH): 5000 x 12 x 1.5 mm
- Colour / Finish: white
- Material: plastic
- Strip Length: 5 m
- Strip Width: 12 mm
- Strip Height: 1.50 mm
- Number of LEDs: 180/m
- Input Voltage: 24 V DC
- Wattage: 10 W/m
- Beam Anngle: 120°
- with Sensor: no
- Energy Efficiency Class: E
- Degree of Protection: IP20
- Installation: self-adhesive
Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.
