VOXAURA Aluminum Profile, AP1002, 3000 x 12 x 12 mm

Documentation
Brochure
CAD Data
Product description

The AP1002 aluminium profile provides a surface-mounted housing for compatible 8 mm LED ribbons in cabinet and ceiling lighting. Measuring 3000 × 12 × 12 mm, it includes a milky-white diffuser with 80% light transmittance for even illumination. The diffuser conceals individual LED dots when used with ribbons containing at least 128 LEDs per metre.

Supplied as one profile with the diffuser, fixings, nine clips and six end caps. The LED ribbon is sold separately. Allow for the ribbon and connector width within the 10.2 mm internal channel.

Specifications and selection

SKU 208.99.22.003

  • Suitable for: 8mm width ribbon (width incl. clip connector)
  • Colour / Finish: profile: grey, diffuser: milky white
  • Material: profile: aluminium, diffuser: plastic

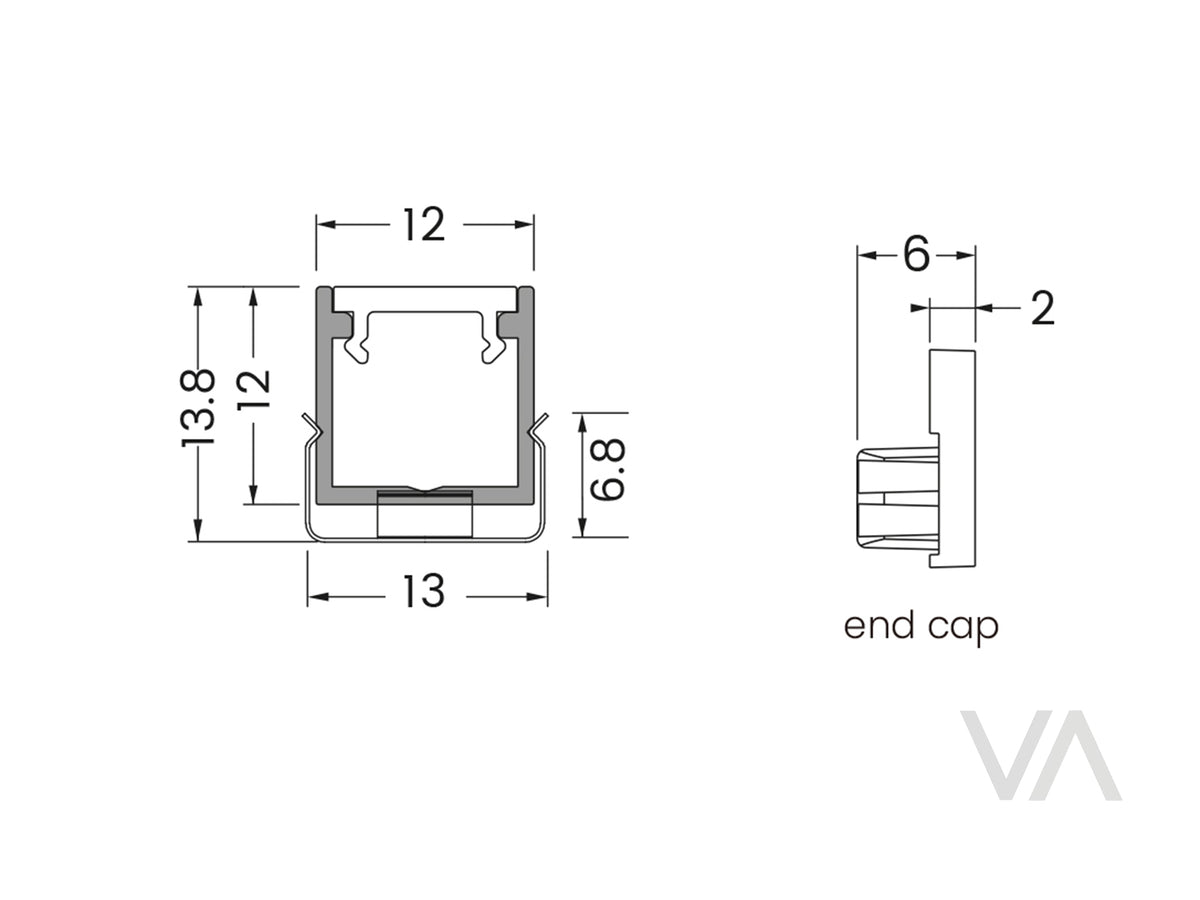

  • Dimensions (LxWxH): 3000 x 12 x 12 mm

Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.

Product features
SKU
208.99.22.003
Suitable for
8mm width ribbon (width incl. clip connector)
Colour / Finish
profile: grey, diffuser: milky white
Material
profile: aluminium, diffuser: plastic
Dimensions (LxWxH)
3000 x 12 x 12 mm
