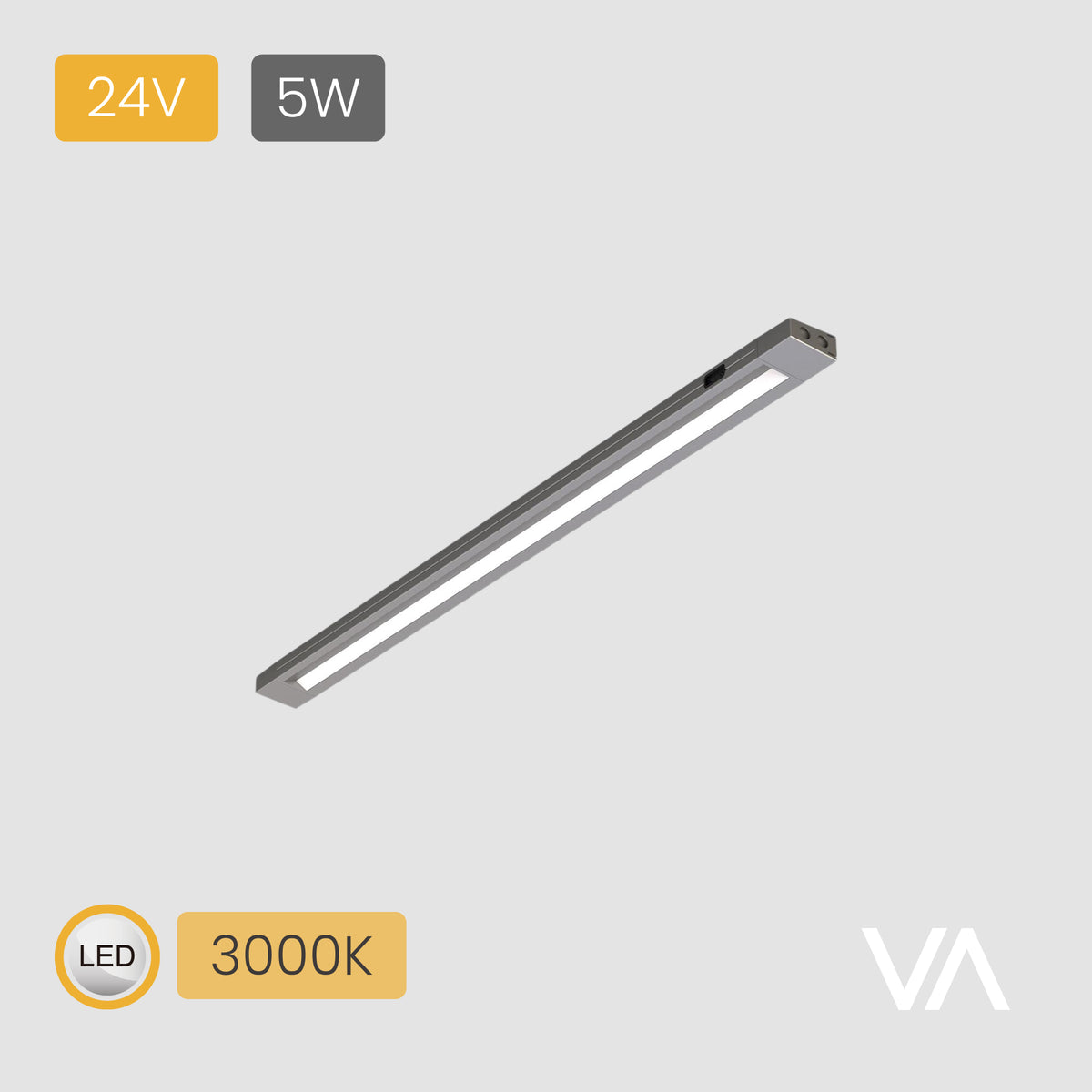

VOXAURA Drawer Linear Light with Integrated Sensor, PL4005, 24V, 5W/m, 2-pin Monochrome, 3000K, 320 LEDs/m, IP20, 1168mm, Silver-grey
The PL4005 drawer linear light with integrated sensor combines 3000 K COB illumination with an IR door sensor for automatic lighting as a drawer opens and closes. Operating at 24 V and 5 W/m, it delivers 118 lm/m with 320 LEDs per metre. The 1168 mm aluminium profile is pre-assembled with a diffuser and can be cut to length from one side. The light is non-dimmable and rated IP20.
Supplied fully assembled, with a 2 m connecting cable, 2 mounting clips and 1 end cap pre-fitted. The clip-in mounting system secures the profile without adhesive and allows later adjustment. Connect the light to an uncontrolled driver output so that the sensor remains powered when the controlled lighting outputs are switched off.
Specifications and selection
SKU 201.10.22.026
- Colour System: Monochrome, 2-pin
- Colour Temperature: 3000 K
- Kind of Light: Drawer linear light
- Colour Rendering Index Ra: 93
- Luminous Flux: 118 lm/m
- Lumen Efficacy: 24 lm/W
- Dimensions (LxWxH): 1168 x 20 x 10 mm
- Colour / Finish: silver-grey
- Material: aluminium
- Number of LEDs: 320/m
- Input Voltage: 24 V DC
- Wattage: 5 W/m
- Beam Anngle: 120°
- with Sensor: yes
- Energy Efficiency Class: G
- Degree of Protection: IP20
- Installation: surface mounting
-
Supplied With: 2 m connecting cable, 2 mounting clips and 1 end cap — all pre-fitted
Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.
