Tall doors / fixed position
Handle bottom is fixed 1000 mm above the door bottom.
AeroFrame / MADE TO ORDER
AeroFrame AeroAxis Doors
Documentation
To enquire or order
Complete the series form and send it to your Sales Rep. No assigned representative? Contact our Sales team.
sales@knoxone.com.au · (03) 9543 6666
AeroFrame AeroAxis Doors
Sale price$4,424.16
Made to order — price by project quotation. View the public AeroFrame AeroAxis Doors specification and quotation page for selection details and the Order Form. Any system price attached to this record is not a fixed offer for your custom project.
Product Description

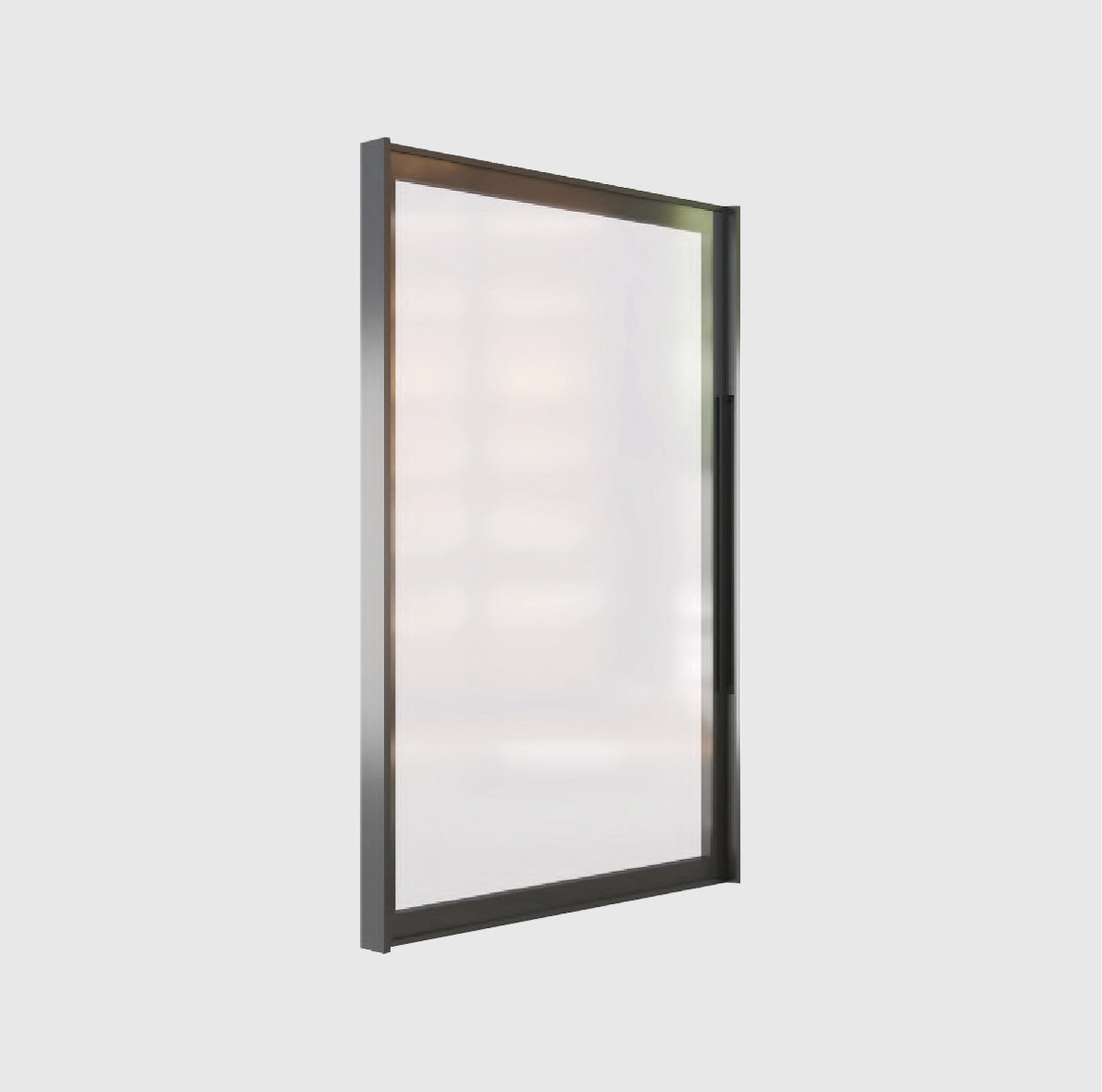

AeroAxis pairs full-overlay aluminium-framed doors with pin hinges for generous access. A 180 mm recessed handle slot is formed within the aluminium profile.
Opening depends on the cabinet arrangement: up to 270° without an applied end panel, or 180° with one. The system requires 18 mm side panels with the specified milling and boring preparation.
All shared frame finishes and AeroGlass options are available. Mesh Glass, Leather and Textile extend the material palette for AeroAxis only.
Planning & ordering
Check the cabinet requirements below, confirm your finishes against physical samples, then complete the latest series Order Form. A quotation is not a production approval.
Product Features
Door system
Full-overlay aluminium-framed door
Hinge
Akrd F1 Pin Hinge
Opening: no end panel
Up to 270°
Opening: with end panel
Up to 180°
Finished door width
250-600 mm
Finished door height
300-3000 mm
Side panels
18 mm only
Preparation
Side-panel milling and boring
Overlay
Full overlay; 16 mm on side panel
Side reveal / centre gap
2 mm / 4 mm
Handle
Integrated 180 mm recessed slot
Frame / panel options
Eight finishes; AeroGlass + 3 materials
Supplied With
Made-to-order door with an integrated recessed handle and the specified Akrd F1 pin-hinge hardware. Final quantity and preparation follow the approved Order Form.
Frame & Panel Options
Choose a frame finish, then a panel option available for this series. Confirm colour and texture against physical samples.
Frame Finishes
Eight finishes shared by all three series
AeroGlass
Pure
Reflect
Texture
Additional Panel Materials
AEROAXIS ONLYMesh Glass, Leather and Textile are separate panel options. They are not available for AeroLite or AeroMono.
Mesh Glass
Leather
Textile
Selection reference only. Record your chosen names in the Order Form; images are not an online configurator.
Hinge System & Cabinet Requirements

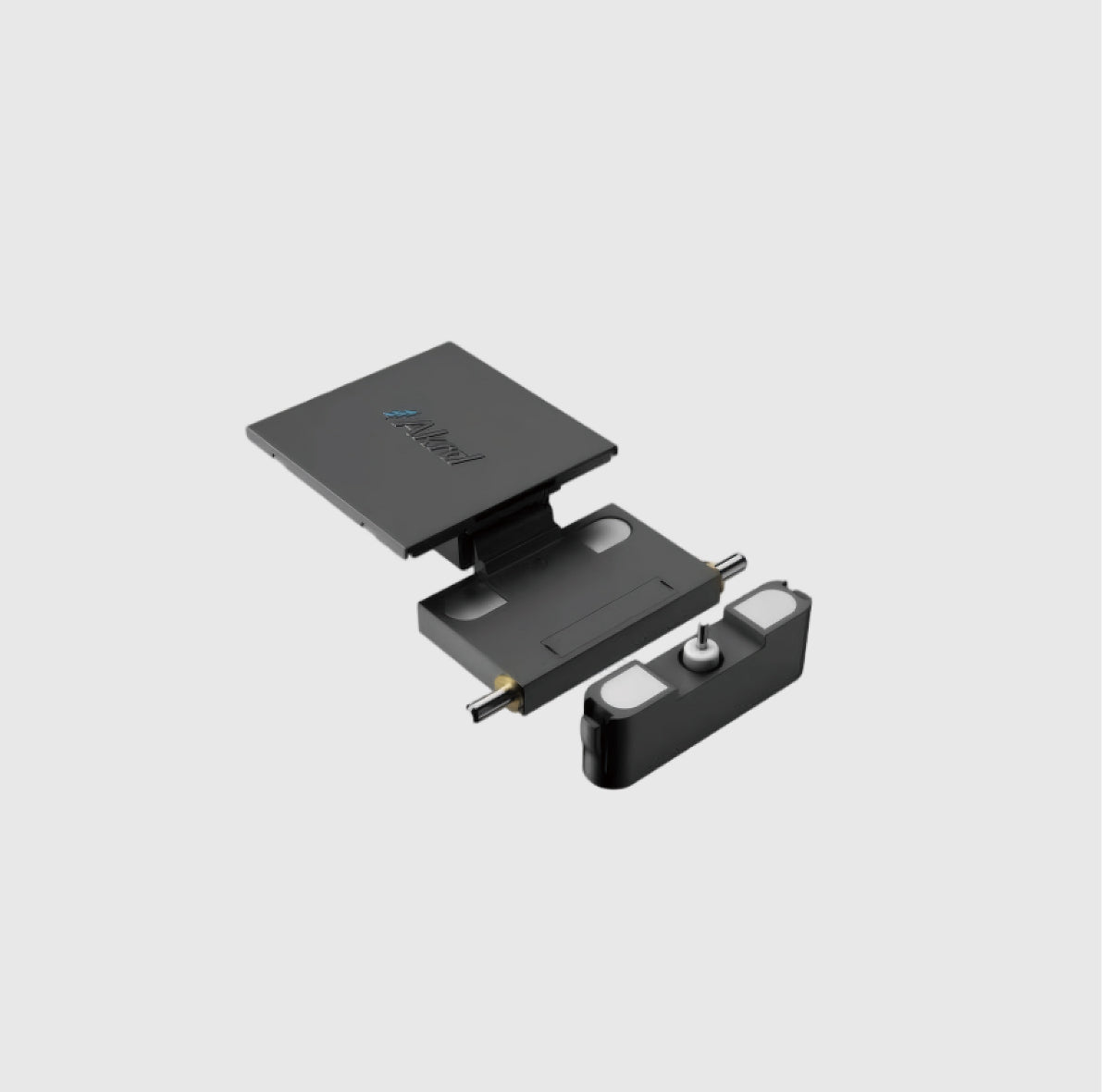

Akrd F1 Pin Hinge · full-overlay cabinet doors

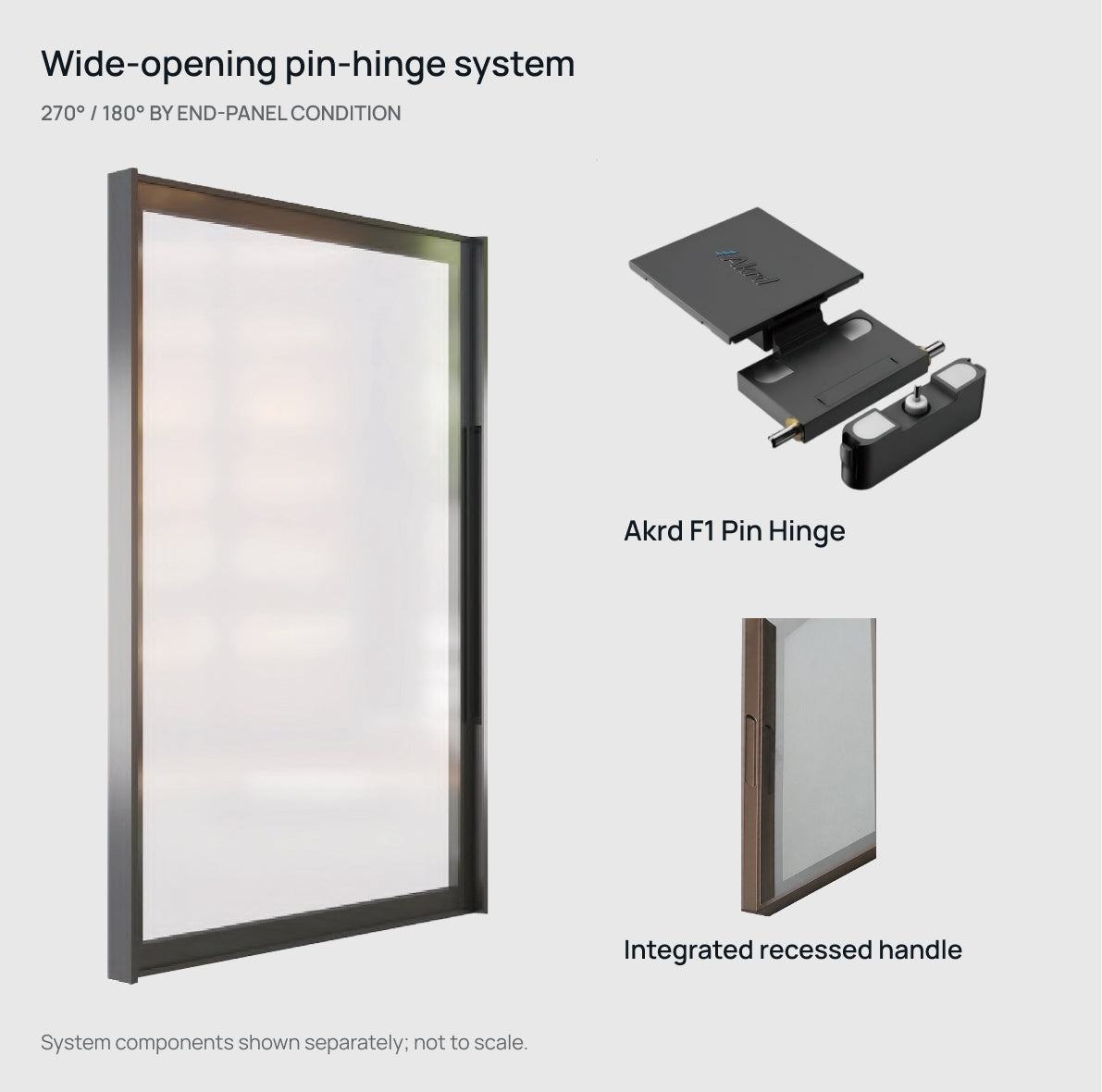

Wide-opening pin-hinge system
The opening angle depends on the surrounding cabinet and the presence of an applied end panel.
18 mm side panels only
Full-overlay installation.
Side-panel milling and boring are required; use the machining details in the Order Form.
Full-Overlay Clearances
TOP VIEW · closed-door arrangement
Cabinet fit
- 18 mm side panel
- 16 mm door overlay
- 2 mm side reveal
- 4 mm centre gap
Confirm all surrounding panels before selecting the opening arrangement.
Check the complete cabinet arrangement and the installation details in the AeroAxis Order Form before manufacture.
Integrated Handle Position

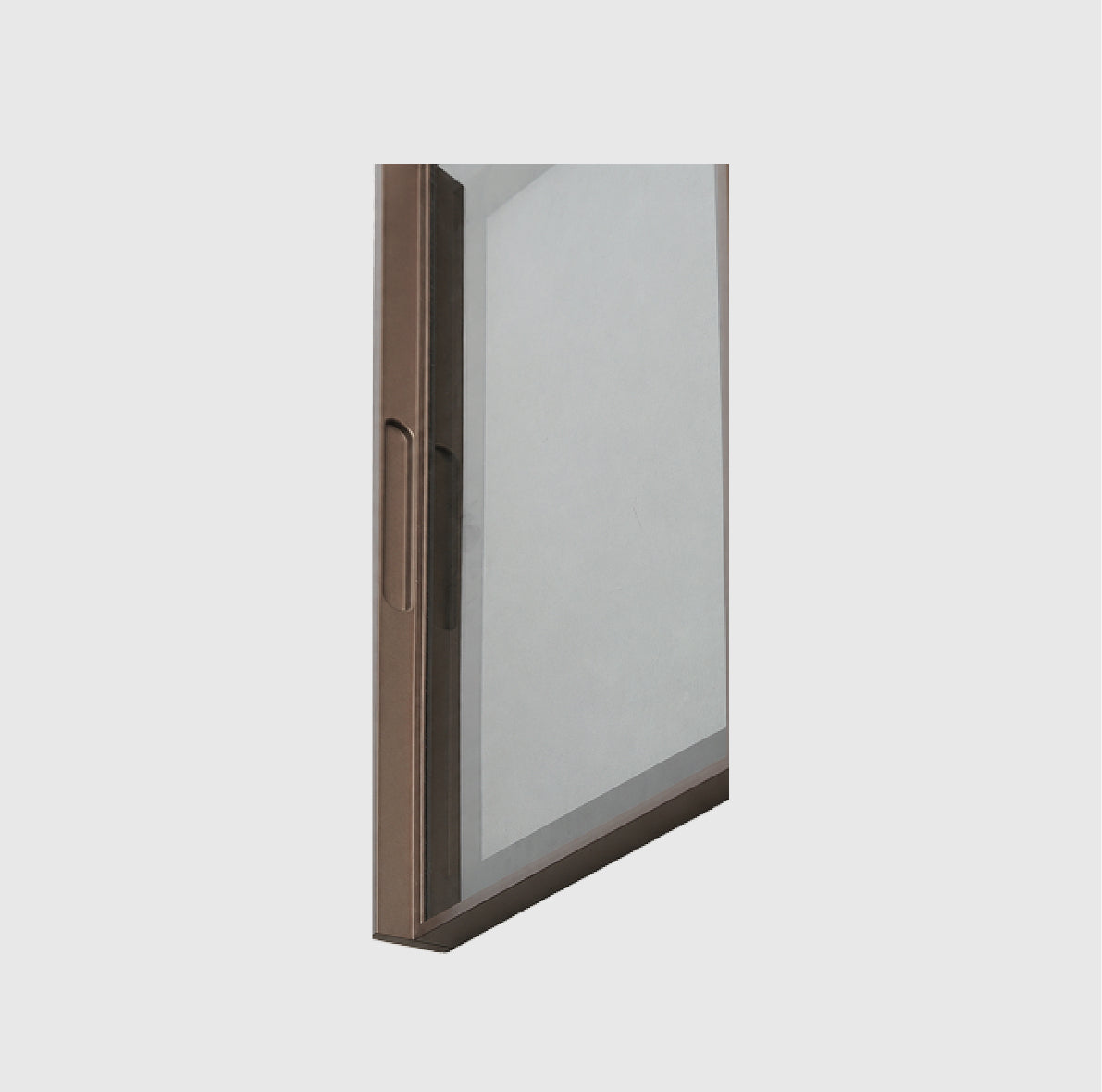

A 180 mm recessed handle slot is formed within the frame, opposite the hinge side.
Short doors / custom position
15 ≤ C ≤ H − 195 mm. C is measured from door bottom to handle bottom.
Confirm the required handle position in the AeroAxis Order Form.
FAQ
Where can I find the complete guide and order details?
Download the Design & Specification Guide for the collection overview. Use the AeroAxis Order Form for final measurements, hardware details and the matching order table.
Can I download documents without signing in?
Yes. The brochure and Order Form are public downloads. The Price List is available to signed-in registered customers only.
Where do I send my form, and what information is needed?
Send your AeroAxis form to your Sales Rep with your company and project / PO reference. For a first quote, include finished width, height, quantity and panel finish. No assigned rep? Email sales@knoxone.com.au.
When is my custom order confirmed?
A quotation is not an order. Complete and sign the final specification for Sales review. Processing is released after approval and full credit / payment coverage. Sales confirms the lead time; released custom specifications cannot be changed or cancelled.
