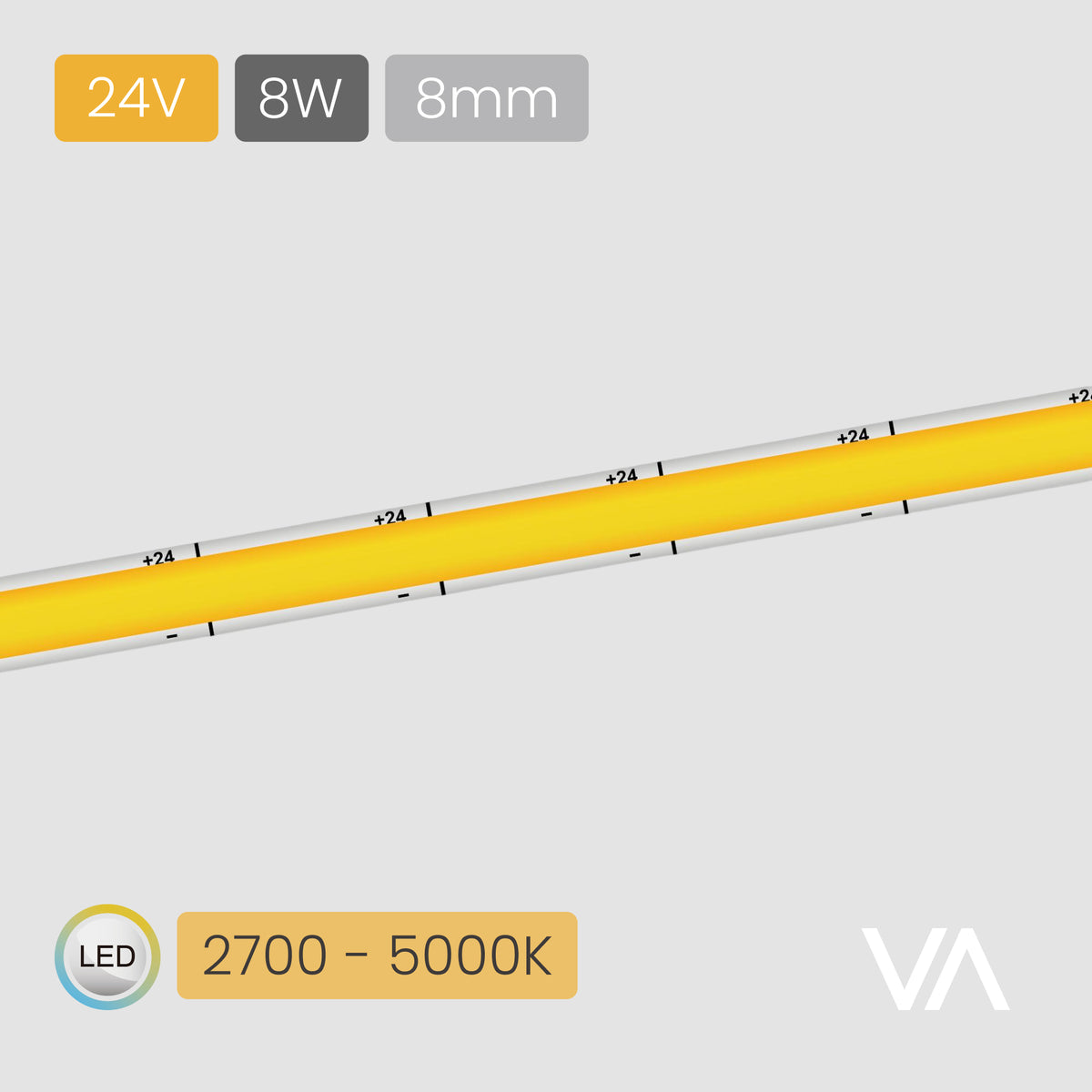

VOXAURA COB LED-Ribbon, LS4031, 24V, 8W/m, 8mm, 2-pin Multi-white, 2700-5000 K, 640 LEDs/m, IP20, 5m

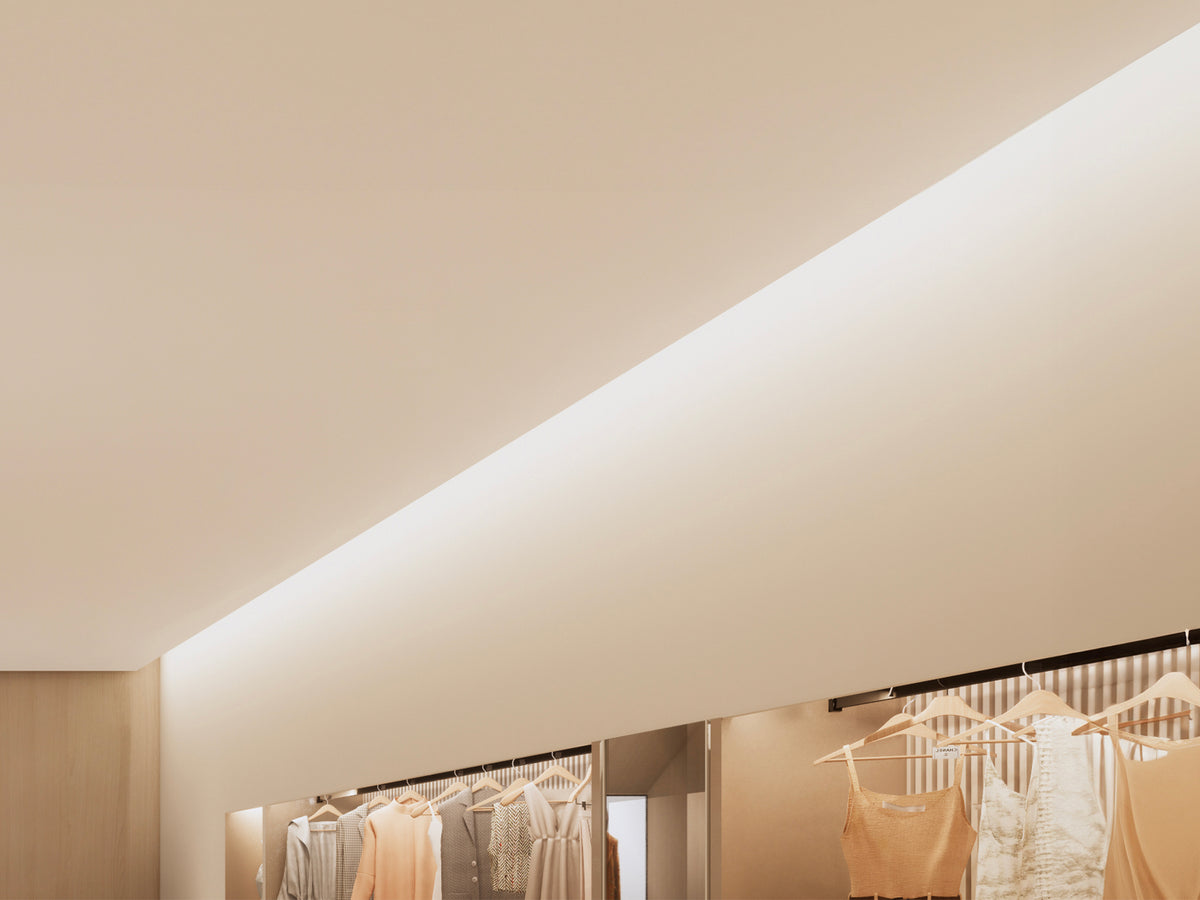

The LS4031 COB LED ribbon provides adjustable 2700–5000 K white light for showroom and ceiling lighting. It operates at 24 V DC and consumes 8 W/m, and is 8 mm wide. Light output is 680 lm/m (2700 K), 720 lm/m (5000 K). CRI 93 supports accurate colour rendering. Dimmable with compatible controls and rated IP20.
COB technology produces an even line of light without visible LED dots and a wide 180° beam.
Supplied as one 5 m roll. Self-adhesive backing supports installation. A 2 m connecting cable and matching 2-pin, 8 mm straight connectors and 90° corner connectors are sold separately. Use a Smart-Driver with a matching multi-white control unit, sold separately. Size the driver for the installed ribbon length plus all other connected loads, keeping the combined wattage within its rated output.
Specifications and selection
SKU 200.11.00.002
- Colour System: Multi-white, 2-pin
- Colour Temperature: 2700 - 5000 K
- Colour Rendering Index Ra: 93

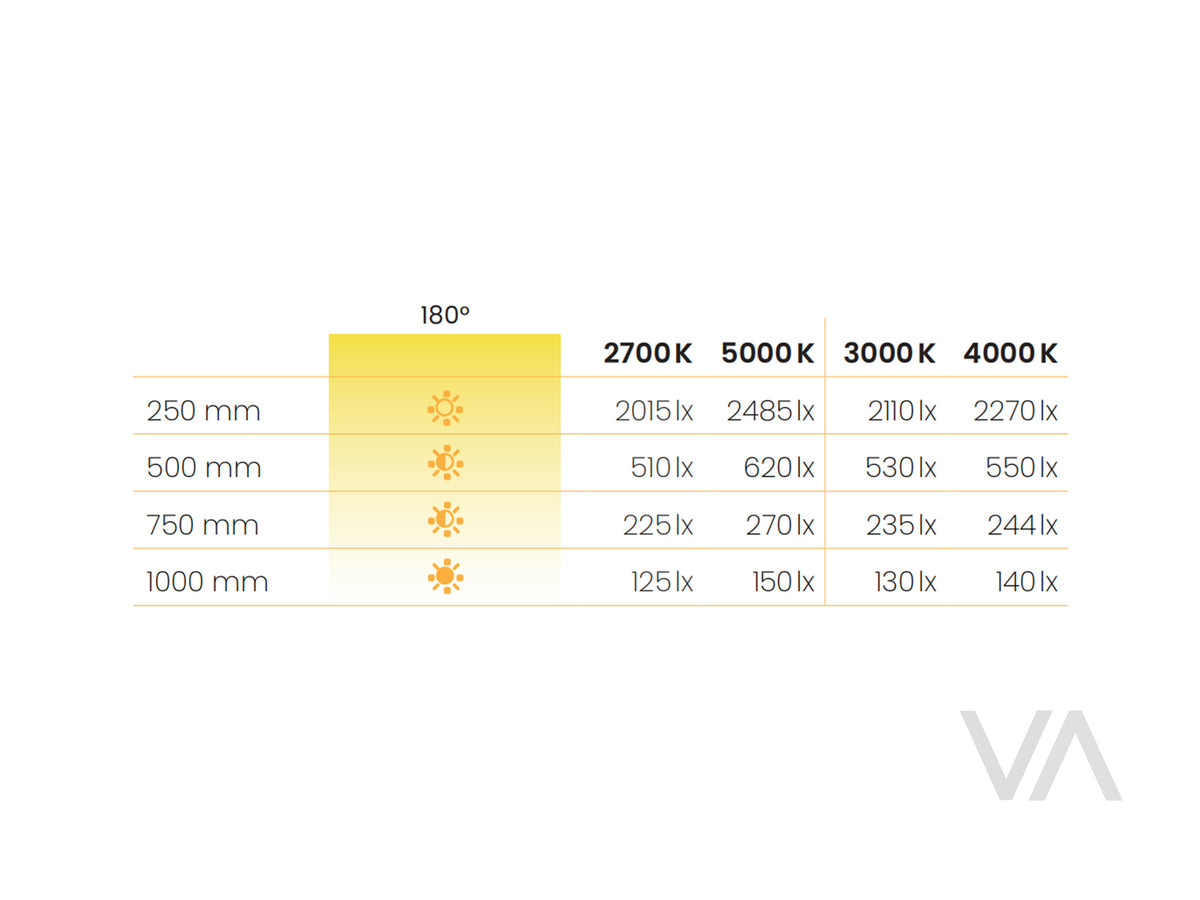

- Luminous Flux: 680 lm/m (2700 K), 720 lm/m (5000 K)
- Lumen Efficacy: 85 lm/W (2700 K), 90 lm/W (5000 K)
- Dimensions (LxWxH): 5000 x 8 x 1.3 mm
- Colour / Finish: silver
- Material: plastic
- Strip Length: 5 m
- Strip Width: 8 mm
- Strip Height: 1.50 mm
- Number of LEDs: 640/m
- Input Voltage: 24 V DC
- Wattage: 8 W/m
- Beam Anngle: 180°
- with Sensor: no
- Energy Efficiency Class: F
- Degree of Protection: IP20
- Installation: self-adhesive
Select the matching SKU and dimensions for your installation. Contact KnoxOne if you need help confirming the configuration.
